1948 Ryan Navion A - N4387K
Interested parties can contact Mike Piccirilli at (314) 705-9250 or mike.piccirilli@wingsofhope.ngo
Summary

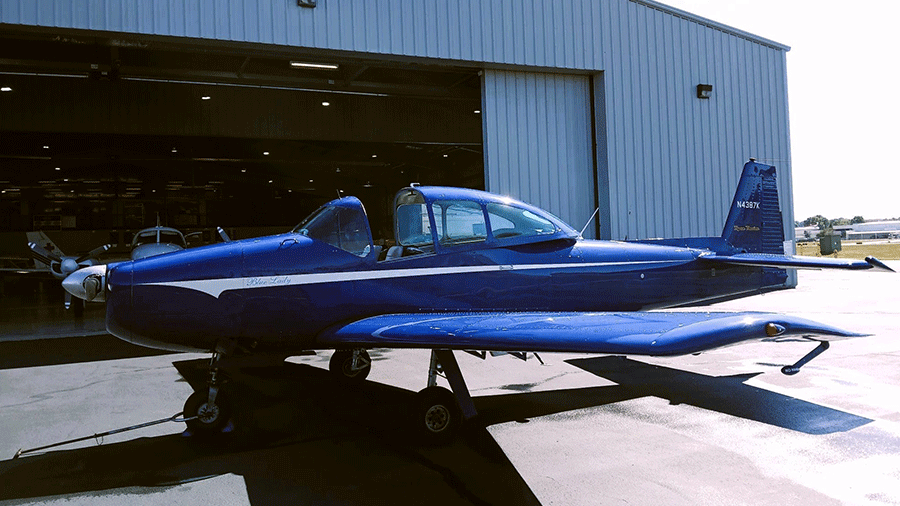

We received the donation of this classic 1948 Ryan Navion A “Blue Lady”. This version has the Continental E-186-9 engine, with updraft cooling, rated at 205HP for take-off and 185 HP afterwards. Our Navion has 3785 TT and 662 SMOH. The major mods incorporated are; 20 gal aux tank (under rear seat), Alternator replacing the Generator, Rear Step replacing the Front Step, and Airwolf remote mounter oil filter. The avionics are older but the instrument panel was reconfigured in the 6 pack configuration and center avionics layout. We are planning to install an ADSB-Out beacon. We recently ferried it to our headquarters, where our technicians and volunteers are refreshing its Annual Inspection and cleaning up the interior. For those that aren’t familiar with the Navion, they are prized for their roomy, comfortable 4 place cockpits, cruises 150 MPH, great stability, docile, forgiving stall characteristics and exceptional short-field performance. Imagine yourself flying with the canopy partially open and the attention you’ll get pulling up on the ramp of each airport you visit!
Additional Equipment Installed/Information
- Complete Log Books
- Airwolf remote mounted Oil Filter
- Plane Power Alternator and Regulator (replaces generator)
- Front Step removed and Rear Step Installed.
- Navion Service Manual (125 pages)
- Damage History: 1/12/2009: While being flown by a ferry pilot from East Coast to new owner in Missouri, the fuel selector valve malfunctioned and engine quit. The Navion was landed, gear up in snow, near Latrobe, PA. Very little damage incurred. Plane was trucked to Rolla, MO where it was reassembled, new fuel selector installed, and next flew in 2013.
Exterior: Overall Dark Blue with White stripes in Good Condition
Interior: Light Gray Interior in Good Condition
Airframe
- Manufacturer: Ryan
- Model Year: 1948
- Aircraft Model: Navion A
- Serial Number: NAV-4-1387
- Total Airframe Time: 3784.8
- Tach Time: 9
Inspection Status
- Date Last Annual Completed: Nov 2021
- IFR Cert (91.411/413)
Engine
- Type/Model: E-185-9
- Engine Serial Number: 6136-D-5-9
- Manufacturer: Continental
- Engine Total Time: 3480.8
- Time SMOH: 660.8 (O/H’d 6/1/88)
- HP: 205 (take-off), 185 continuous
- TBO: 1500
Propeller
- Manufacturer: Hartzell
- Model: HC-D2MV20-70
- Propeller Serial Number: AVA265
- Propeller Time Since New: 226.27
- Time SMOH: 115.7
- Date Overhauled: 1/26/11
Avionics
| Unit | Manufacturer | Model | Notes |
|---|---|---|---|
| Comm | Bendix/King | KY-197 | |
| Nav/Com G/S | Bendix/King | KX-155 | |
| Transponder | Bendix/King | KT-76A | No ADS-B |
| Audio Panel/Mkr BC | NARCO | CP-136 | |
| Intercom | Sigtronics | SPA-400 | 4 place |
Weight and Balance Data
| Basic Empty Weight | 1782.26 |
| Max Seat Capacity | 4 |
| Useful Load | 967.74 |
| Gross Weight | 2750 |
| Empty Weight CG | 95.2 |
* (Refer to Wt. & Balance Record, 4/4/2013)
Total Fuel Capacity: 39.5 Gallons + 20 gal Fuselage Aux tank
Best attempt has been made to reflect accurate information. Subject to verification by the buyer.
