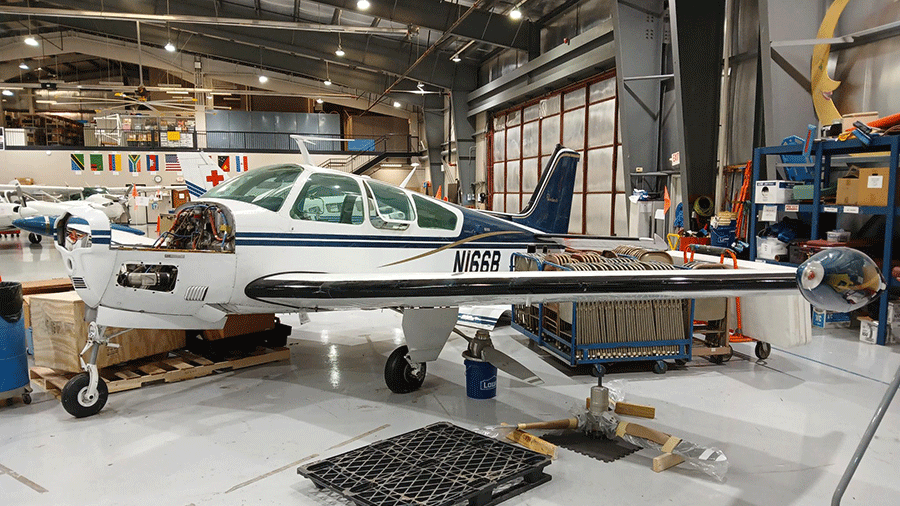

1972 Beech G33 Bonanza Project with Turbo Normalized IO-520 BB
N166B

$100,000

Interested parties can contact Mike Piccirilli at (314) 705-9250 or mike.piccirilli@wingsofhope.ngo

Summary

Here’s your opportunity to own a nice G33 Bonanza that has many performance upgrades plus a newer Garmin avionics suite, including the G500 Auto-Pilot and very nice Paint & Interior for just $100,000! 6,794 TT, 1,215 SMOH, on engine and prop. The upgrades include:

  • Continental IO-520-BB, (increase of 25 HP)
  • Turbo Alley Turbo-Normalized System (SE5222NM)
  • Beryl D’Shannon 15-Gal Tip Tanks (GW increase to 3,465, UL = 1,171)
  • GAMI Injectors (SA00432SE)
  • Garmin Avionics, installed in 2023: 750Xi, GI-275 AI & HSI, GFC-500 2 axis A/P, 255A Nav/Com, 345 ADS-B Transponder

The only catch is that engine and turbo have been disassembled and need to be overhauled. The G33 was donated to our charity 10 years ago and we’ve used it as our utility plane over the last decade. In 2024, we started its Annual and discovered that the valve guides had worn excessively. Our plan was to utilize our engine overhaul experienced volunteer and IA to perform the overhaul in-house. Our volunteers tore down the engine and turbo system. Unfortunately, since then the experienced engine volunteer has passed away and the IA has left, so we no longer have the experience to perform the engine work ourselves. We’ve reevaluated aircraft needs and no longer need the G33 in our fleet and we don’t have the funds to pay for the engine overhaul. We are allowing the buyer to have 6 months of “free” hangar rent and use of our engine hoist and other normal equipment required to put the G33 back together and get it Annualed.

It’s a great opportunity for the right mechanic/pilot to get a good-looking high-performance, very capable Bonanza at a bargain price!

Purchases from Wing of Hope help fund our domestic and international medical air transport programs.

Additional Equipment Installed/Information

Exterior: Overall White w/Red and Black stripes in Good to Fair Condition.  Leading edge paint is thin.

Interior: Updated Red & Black Cloth seating, sidewalls, and carpeting. Newer Beige Headliner and Plastic Trim, Very Good Condition

Major Aircraft Upgrades/Improvements: Refer also to FAA Form 337 Records.

  • 15 Gallon Fiberglass Tip Tanks (30 Gallons Total)
  • Upgrade to IO-520-BB engine with turbo-normalizing per STC SE5222NM
  • Fuel Flow Transducer
  • Temperature Monitoring System
  • Horizon Instruments Model P-1000 Digital Aircraft Tachometer
  • Installed Great Lakes Aero Windshield (.375)
  • GAMI Injectors
  • Dual Yoke
  • R / L Fuel Cells Replaced (Mar/Feb 2006)

Accident/Repair History:

  • 7/11/76: Go-Around Landing Accident, Logbook Repair Entry and 337: 4/1/77
  • 8/11/89: Forced Landin in Field, Wing Skins Repair Entry and 337: 12/14/89
  • 4/1/91: Gear Up Landing & Hail Damage, Logbook Repair Entry: 8/19/02
  • 3/28/97: Forced landing w/gear in transition, 337 9/30/97 and Logbook Repair Entry 11/1/97
  • For instances of structural work performed in logbook (see attached logbook and Form 337 scans)

Airframe

  • Manufacturer: Beech
  • Year Manufactured: 1972
  • Aircraft Model: G33
  • Serial Number: CD-1293
  • Total Airframe Time Since New: 6,794 Hours
  • Tach: 2,744 Hours

Inspection Status

  • Last Annual Completed: 3/22/23

Engine

  • Type/Model: IO-520-BB
  • Serial Number: 280728-R
  • Manufactured By: Teledyne Continental
  • Date Installed May 14, 2012
  • Total Time Since New: 2,692 Hours
  • Time Since Major Overhaul (SMOH): 1215 Hours (O/Hin 2012)

Propeller

  • Manufactured By: McCauley
  • Model: 2A36C23-P-ED-G
  • Hub Serial Number: 744754
  • Total Time: 3,222 hrs
  • Time Since Major Overhaul: 1212 Hours (date 5/14/2012)

Avionics

Unit Manufacturer Model Notes
GPS/Nav/Com Garmin GTN-750Xi
Nav/Com Garmin GNC-255A
Transponder Garmin GTX-345R ADS-B In/Out
Audio Panel Garmin GMA-35
Auto Pilot Garmin GFC-500 2-Axis
Horizontal Situation Indic & Attitude Indic Garmin GI-275s

Weight and Balance Data

Basic Empty Weight 2,294.0 Pounds
Max Seat Capacity 4
Useful Load 1,171.0
Gross Weight 3,465 Pounds
Empty Weight CG 82.28

* (Refer to Wt. & Balance Record, 02/02/2017)

Total Fuel Capacity: 80 + 30 = 110 Gallons

Best attempt has been made to reflect accurate information.  Subject to verification by the buyer.
